Title: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 07, 2020, 06:53:41 PM: Disassembly

I started the disassembly last week after cleaning out the garage. The biggest challenge was working out how best to work on the engine once I have removed it from the frame. With the clutch gearbox arrangement being similar to a car, I could see an automotive engine stand would work nicely. So I purchased the cheapest stand I could get ($117) and the photos below show the progress.

I also made up a steering lock and left the front end on while I separated the frame. This way I could sit the rear seat frame on a bench and the bike was stable while removing the gearbox and engine.

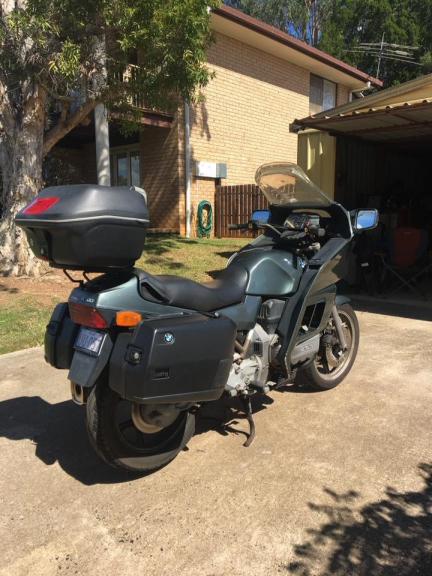

1. Bike before the project (I bought the bike sans the fairings and luggage)

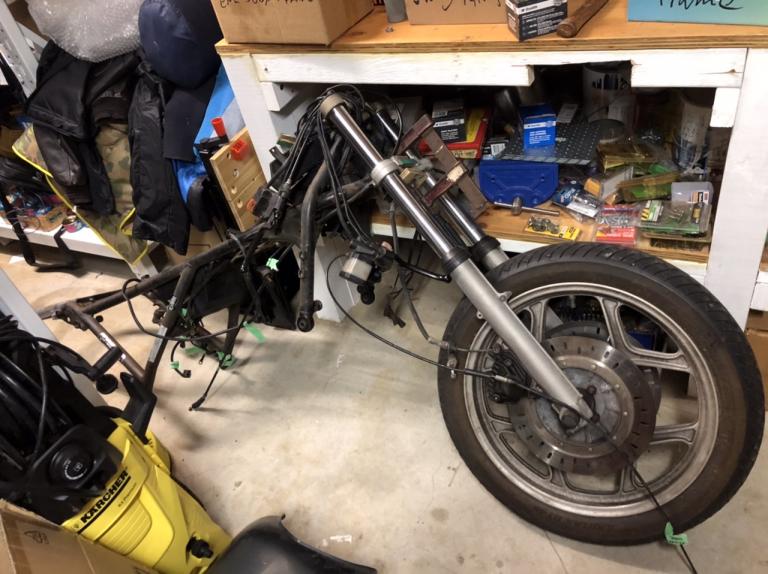

2. Initial disassembly

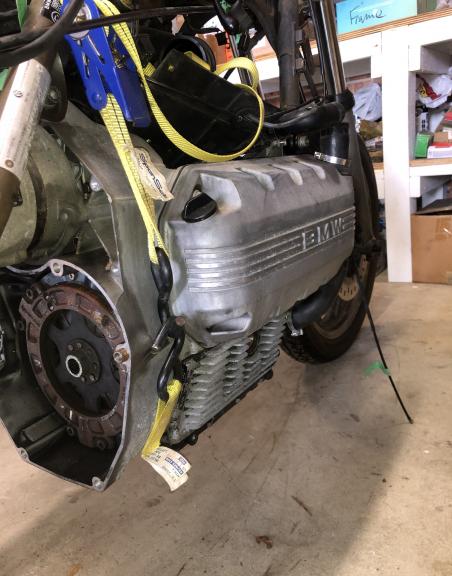

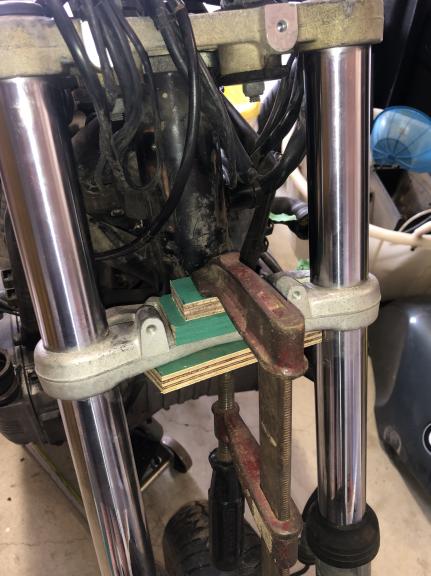

3. Steering lock

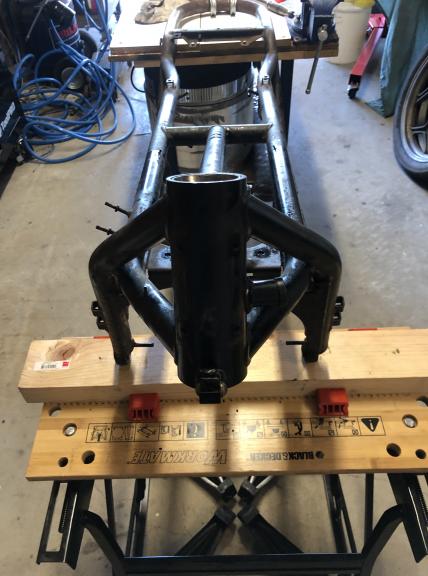

4. Seat frame on bench for gearbox / engine removal


5. Gearbox removed

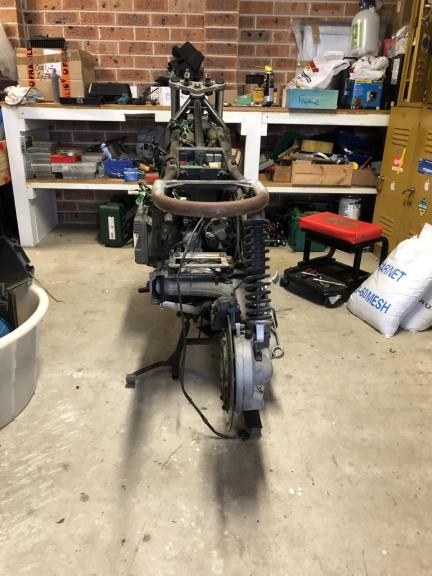

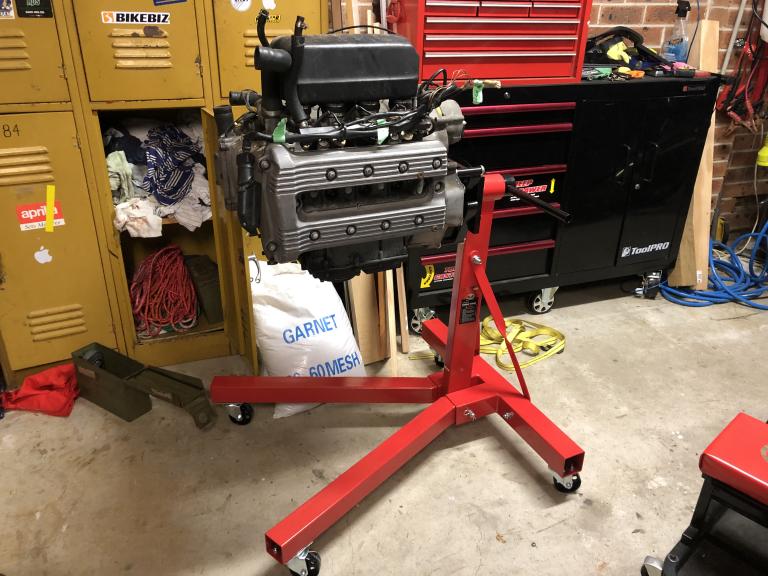

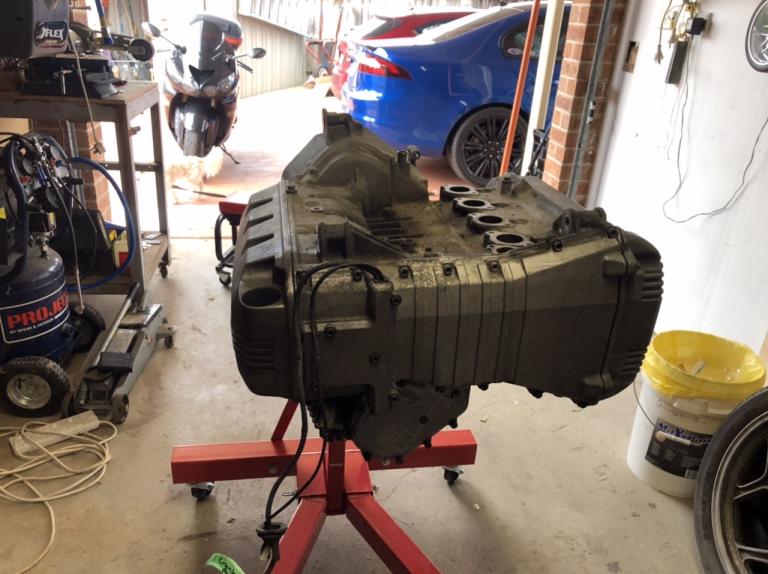

6. Engine removed and on stand

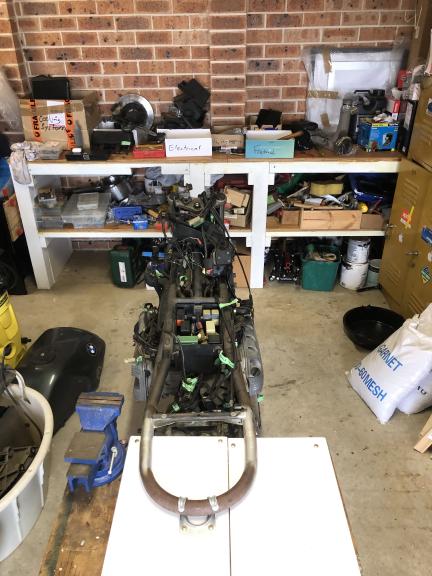

7. Frame with front end and loom still to be removed.


TH

(Edited to correct orientation of images)
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: volador on April 08, 2020, 09:46:50 AM: Looking good you're off to a good start. Where did you get the engine stand?
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 08, 2020, 06:14:20 PM: Supercheap Auto Parts - Sydney Australia

Engine Stand. https://www.supercheapauto.com.au/p/sca-sca-engine-stand-560kg/219511.html (https://www.supercheapauto.com.au/p/sca-sca-engine-stand-560kg/219511.html)
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Martin on April 08, 2020, 06:46:29 PM: :welcome
Regards Martin.
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: volador on April 08, 2020, 07:15:07 PM: Quote from: Trash Hauler on April 08, 2020, 06:14:20 PM
Supercheap Auto Parts - Sydney Australia

Engine Stand. https://www.supercheapauto.com.au/p/sca-sca-engine-stand-560kg/219511.html (https://www.supercheapauto.com.au/p/sca-sca-engine-stand-560kg/219511.html)

Crikkey, was thinking Sydney Nebraska not another downunder bloke

there's a tribe of you'll here you just met chief 'Regards Martin'
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: volador on April 08, 2020, 07:42:17 PM: Bonzer engine stand

Can you give us a piccy of stand mounting to intermediate housing.
Just an observation I would be concerned to exert to much force on that intermediate housing maybe a support under the oil pan would alleviate some of the engine weight
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 09, 2020, 02:33:50 AM: Quote from: Martin on April 08, 2020, 06:46:29 PM
:welcome
Regards Martin.

Thanks Martin - good to be here
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 09, 2020, 02:35:11 AM: Quote from: volador on April 08, 2020, 07:42:17 PM
Bonzer engine stand

Can you give us a piccy of stand mounting to intermediate housing.
Just an observation I would be concerned to exert to much force on that intermediate housing maybe a support under the oil pan would alleviate some of the engine weight
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 16, 2020, 09:52:25 PM: Frame and engine disassembly complete ready for blanking, degreasing and glass blasting.


Title: Re: Trash Hauler’s first K100 Cafe Racer Project

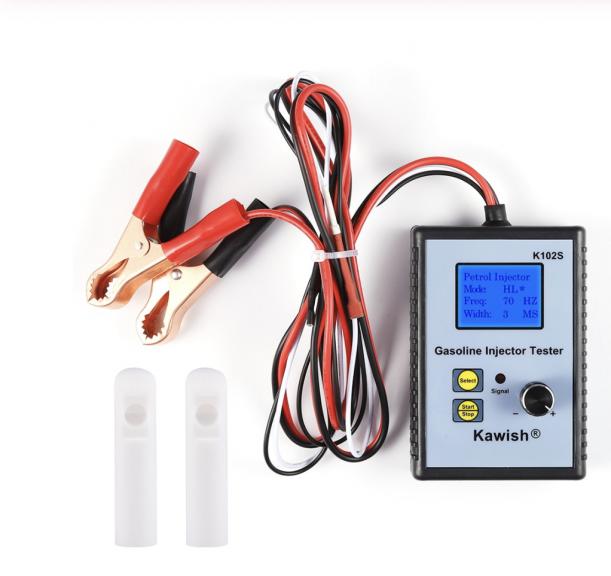

Post by: Trash Hauler on April 23, 2020, 07:02:00 PM: I have ordered an Injector Pulser Tester from AliExpress to go with my ultrasonic cleaner. $26 USD.

I will post a review once I have used it.

https://www.aliexpress.com/item/33008882556.html?spm=a2g0s.9042311.0.0.3a854c4dPKo9W9 (https://www.aliexpress.com/item/33008882556.html?spm=a2g0s.9042311.0.0.3a854c4dPKo9W9)


TH
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Martin on April 23, 2020, 08:27:53 PM: You might want to get a 250 ML graduated vessel to compare injectors. Home brew supply shops have them. I built an air powered test unit set to 35 PSI due to not wanting to blow up my workshop. On the advice of a local injector workshop I use lacquer thinners to clean the injectors which is a lot cheaper and more effective. The vapours however do melt some types of plastic for example the lid of my sonic cleaner which did eventually solidify. I would remove the pintle caps, filter screens and "O" rings if using thinners. The thinners did however restore a set of Ford injectors that nothing else would clean and had been rejected by another injector shop.
Regards Martin.
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 23, 2020, 08:33:08 PM: Thanks Martin - great advice.
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Martin on April 23, 2020, 08:56:04 PM: TH see here http://www.motobrick.com/index.php/topic,12153.msg107177.html#msg107177 The test unit has changed a bit since it's inception the plastic bottle has been changed to a graduated vessel and I'm now using a Sun test pulser.
Regards Martin.
Title: Re: Trash Hauler’s first K100 Cafe Racer Project
Post by: Trash Hauler on April 23, 2020, 11:21:03 PM: Thanks Martin - I like your setup. I am going to build one the same. I think I have an old fire extinguisher in the shed that may work as the container.

TH
